An AI Powerhouse for Autonomous Systems

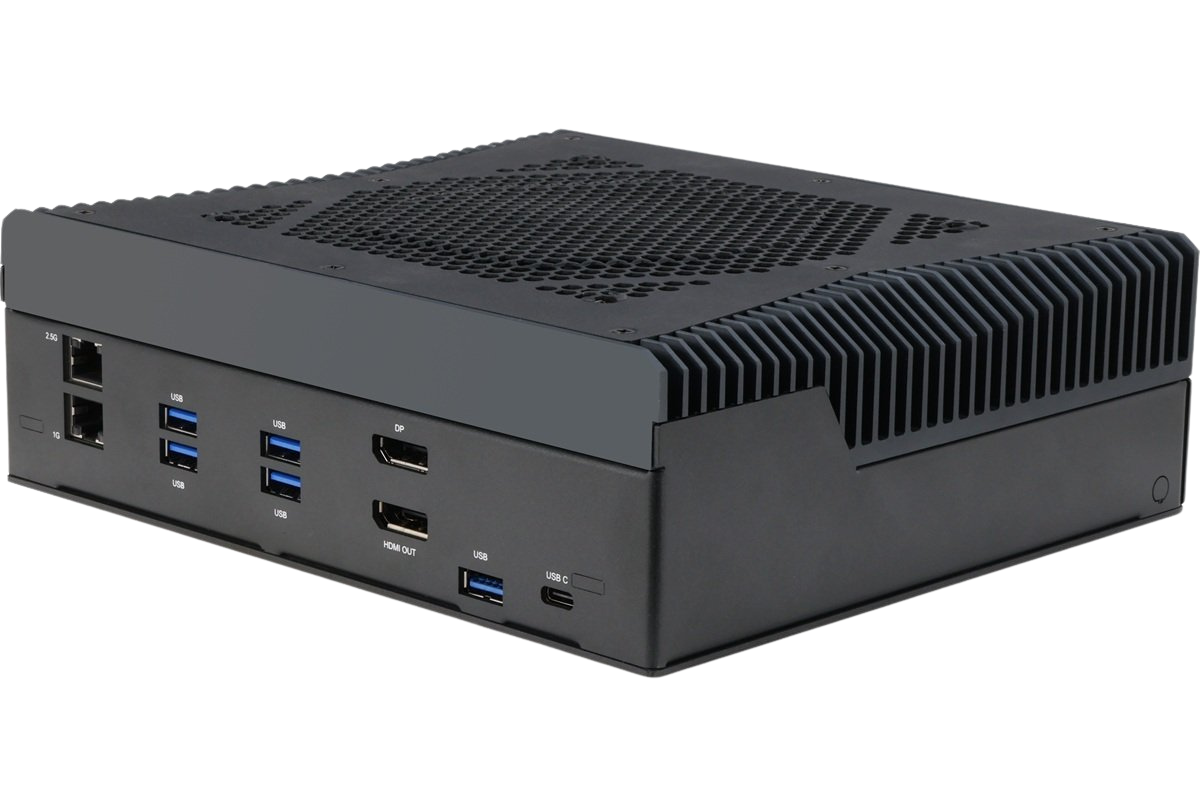

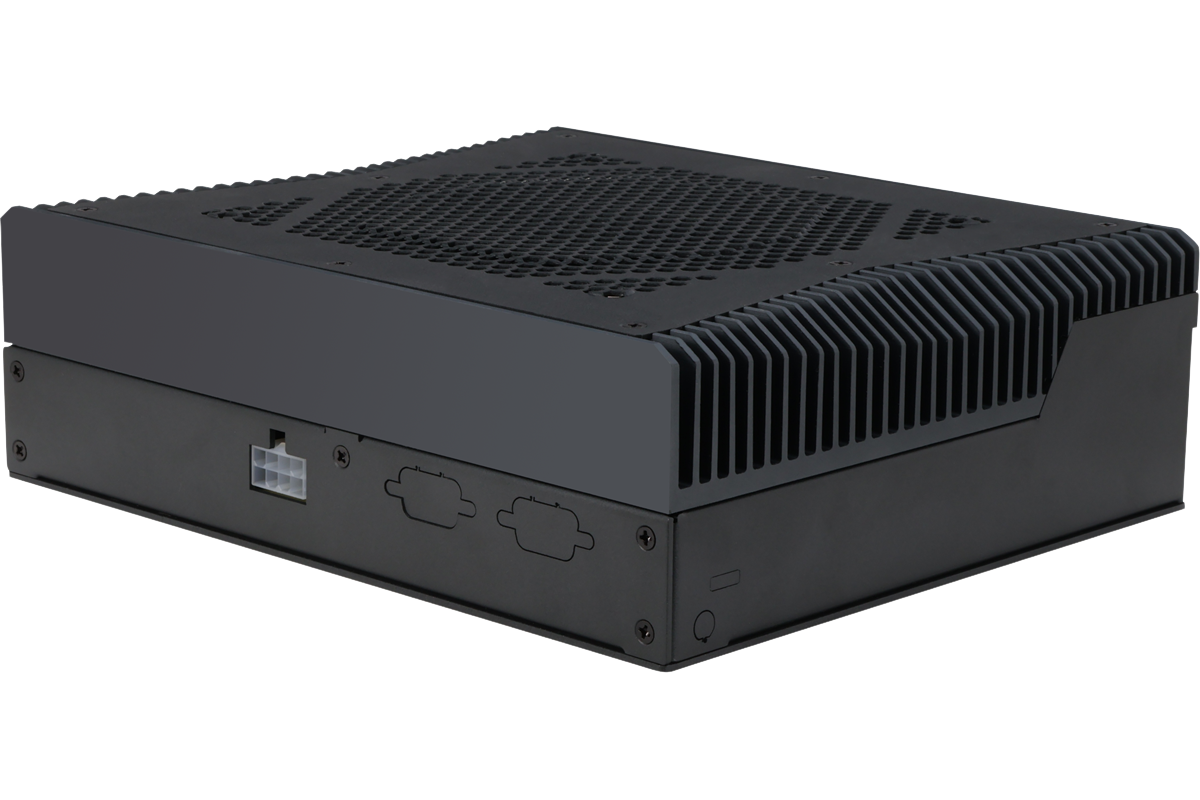

Intelli i14 Edge
The Intelli i14 Edge is the ultimate compact rugged AI PC, blending the 24 core, 32 thread Intel® Core™ i9 processor 14900T, an integrated NVIDIA RTX™ MXM module, and a plethora of interfaces to maximize the performance of advanced robotic solutions such as AMR and embedded workstations.
It delivers exceptional parallel processing for real-time AI workloads such as LiDAR fusion, computer vision, and motion control. Its dust-proof design meets IEC vibration standards, ensuring reliable operation in harsh environments. With rich I/O, dual NVMe storage, and long-lifecycle GPU support, the Intelli i14 Edge is ideal for autonomous robotics, healthcare imaging, smart mobility, defense, and industrial automation.
Key Strengths
Powerful
- Pre-integrated with Intel® Core™ i9-14900T, 24 cores / 32 threads up to 5.5GHz for high-performance edge computing.
- Support Intel® Core™ Processors (14th Gen), up to 65W.
- Ideal for real-time AI workloads: LiDAR fusion, computer vision, multi-sensor orchestration.
Graphic
- Pre-integrated NVIDIA RTX™ MXM GPU (A2000/A4500) with up to 5,888 CUDA cores, 184 Tensor cores and 16GB GDDR6 memory with ECC.
- NVIDIA MXM GPU offers long lifecycle, compact and anti-vibration.
- Supports advanced AI inferencing and parallel processing.
Faster
- Support DDR5 SODIMM x 2, up to 96GB, 4800 MT/s, ECC supported.
- Dual NVMe storage for high-speed access to multimodal datasets.
- Six USB 3.2 ports and two LAN ports for seamless sensor and peripheral integration.
Expandable
- MXM 3.1 GPU slot (Type A, B, B+), PCIe Gen 4 x16 with flexible power options. * Only support AAEON validated MXM GPU module.
- Rich I/O for industrial expansion: cameras, LiDAR, IMU, PLCs.
- 2x M.2 2280 M-key and 1x M.2 2230 E-key for WiFi and SSD module expansion.
AI Ready
- Optimized for autonomous robotics, smart mobility, and industrial automation.
- Supports AI model deployment at the edge with real-time responsiveness.
- Ideal for healthcare imaging, AMR/AGV, and predictive maintenance.
Industrial & Secure
- Dust-proof enclosure with IEC EN60068-2-64 vibration compliance.
- Designed for harsh environments: automotive, and mobile robotics.
- Lockable design for cables.
- Long-term stability and rugged reliability for mission-critical use.
Edge Edge
System Details
Hardware overview
- Intelli i14 Edge with Intel® Core™ i9-14900T, Intel® R680E Chipset, and MXM GPU module options:
- NVIDIA RTX A4500 MXM GPU Module
- NVIDIA RTX A2000 MXM GPU Module
- 1x 330W AC/DC power adapter
- 1x US power cord, 1x EU power cord
Tech Specifications
| System | |
| CPU | • Intel® Core™ Processors (14th Gen), up to 65W • LGA 1700 socket • Default: Intel® Core™ i9-14900T |
| Chipset | Intel® R680E Chipset |
| Memory | DDR5 SODIMM x 2, up to 96GB, 4800 MT/s, ECC supported |
| MXM Graphics | • NVIDIA RTX™ A2000/NVIDIA® RTX™ A4500 MXM Module • Support MXM 3.1 Type A/ B/ B+, Max 115W, PCIe Gen4x16 • Only support AAEON validated MXM GPU module |
| Storage | via M.2 2280 M-Key x 2 (NVMe) |
| WIFI/BT | via M.2 2230 E-Key |
| Expansion Slot | • M.2 2230 E-key x 1 • M.2 2280 M-key x 2 |
| Security | TPM2.0 onboard |
| OS Support | • Windows 10/ 11 IoT Enterprise • Linux 64-bit |
| I/O Placements | |
| USB | • USB 3.2 Gen 1 (Type A) x 5 • USB 3.2 Gen 2 (Type C) x 1 |
| Display Port | • Display Port x 2 from MXM GPU • Display Port (USB Type C) x1 from MXM GPU (A4500 SKU Max: 7680×4320 @ 60Hz) |
| Ethernet | • 2.5GbE x 1 (Intel® Ethernet Controller I226-IT) • 1GbE x 1 (Intel® Ethernet Connection I219-LM) |
| Power Supply | |
| Power Requirement | 12V DC-in |
| Power Supply Type | AT (default)/ATX |
| Power Consumption(Typical) | 300W |
| Mechanical | |
| Mounting | – |
| Dimensions (WxHxD) | 8.07” x 7.48” x 2.76” (205mm x 190mm x 70mm) |
| Net Weight | 6.57 Ibs (2.99 kg) |
| Gross Weight | 6.72 Ibs (3.05 kg) |
| Environment | |
| Operating Temperature | 32°F ~ 122°F (0°C ~ 50°C)/0.5m/s airflow |
| Operating Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) |
| MTBF | 1,373,882 |
| Certification | CE/FCC Class A, RoHS Compliant, REACH |
Vertical Markets
Block Diagram
