Next-Generation AI Edge Computing

UP WCL Series

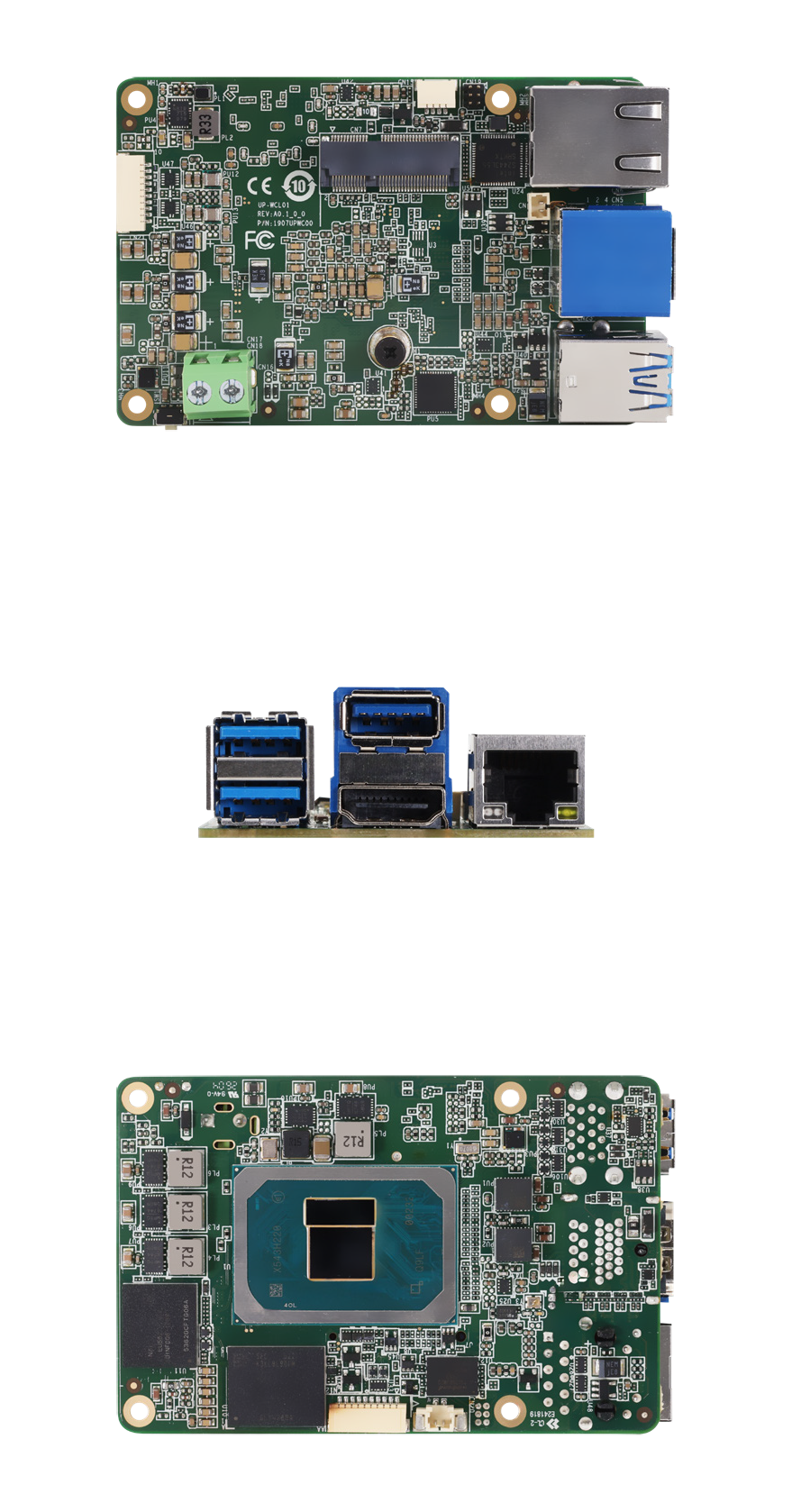

The UP WCL Series is a next-generation industrial developer platform built on the latest Intel® Core™ processors (Series 3), bringing AI-ready computing to the industry’s proven 1.8-inch, credit card-sized form factor.

Powered by Intel® Core™ 3/5/7 processors, the platform combines high-performance CPU computing, Intel® Graphics for visual processing, and Intel® AI Boost (NPU) to deliver an optimized heterogeneous computing architecture for modern mainstream Edge AI applications. With up to 40 Platform TOPS of AI performance, developers can efficiently run AI inference, graphics processing, and traditional computing workloads simultaneously on a single ultra-compact platform.

Despite measuring only 85mm × 56mm, the UP WCL Series delivers industrial-grade performance, rich connectivity, and flexible integration for embedded system development. Its compact footprint makes it easy to deploy in applications where installation space is limited without compromising computing capability or long-term reliability.

Designed for developers, OEMs, and system integrators, the UP WCL Series accelerates the journey from AI development to industrial deployment, making it an ideal platform for intelligent automation, robotics, machine vision, smart retail, digital signage, drone, and next-generation edge computing solutions.

Order Board
Order System
Download Datasheet

Overview　|　Kit Details　|　Community Support

Key Strengths

Next-Generation Intel® Core™ Platform

The UP WCL Series is powered by Intel® Core™ processors (Series 3), providing scalable performance options for different embedded and edge computing requirements.

Its heterogeneous computing architecture combines CPU performance for general-purpose and control workloads, Intel® Graphics for visual and parallel processing, and integrated AI acceleration for efficient inference. By assigning workloads to the most appropriate processing engine, the platform can support demanding edge applications while maintaining efficient use of system resources.

artificial-intelligence

Up to 40 TOPS for Edge AI Workloads

Delivering up to 40 TOPS of AI performance, the UP WCL Series accelerates AI inference directly at the edge, enabling faster decision-making, lower latency, and reduced cloud dependency. Its heterogeneous CPU, Intel® Graphics, and Intel® AI Boost architecture optimizes AI workloads for applications such as machine vision, intelligent automation, and real-time analytics.

UP Xtreme PTL Carousel

High Performance in a
Credit Card-Sized Footprint

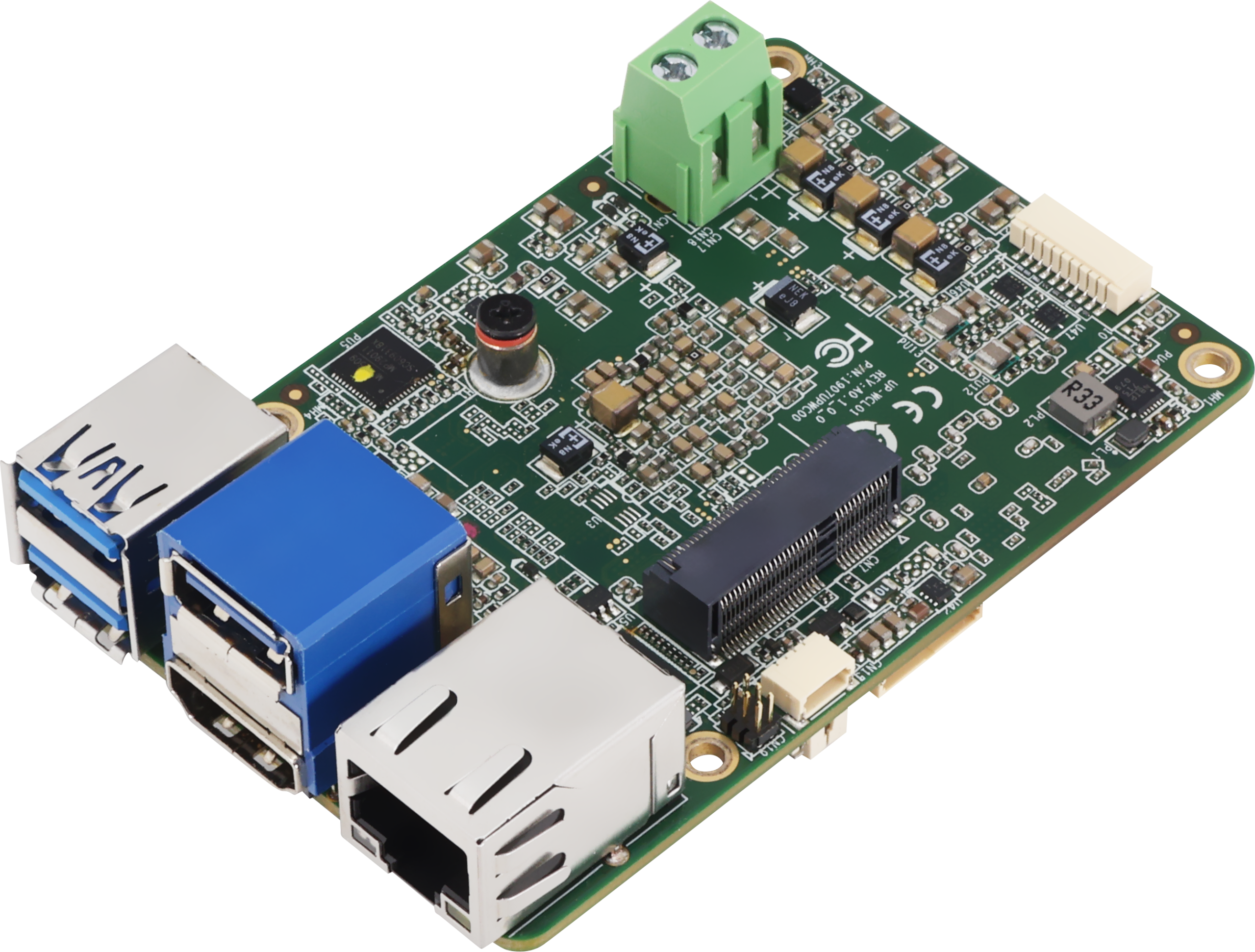

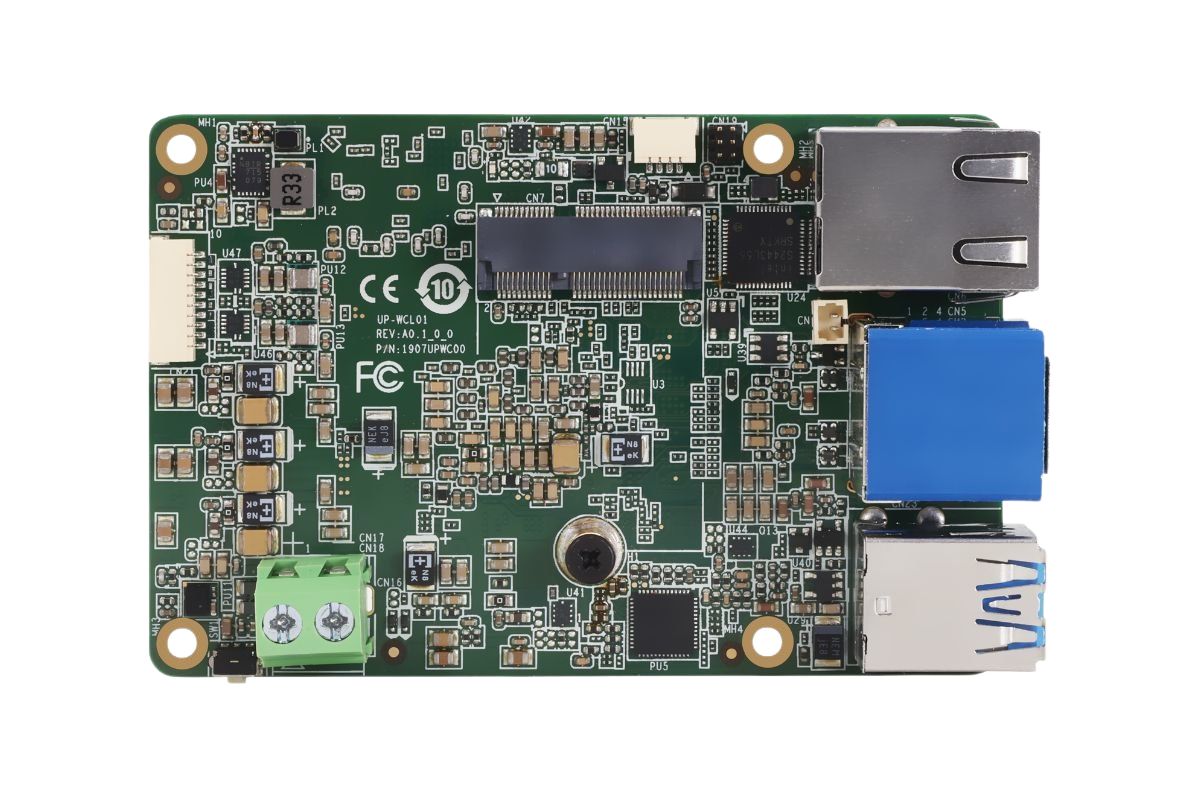

Measuring just 85mm x 56mm, the UP WCL brings high-performance computing into the proven 1.8-inch, credit card-sized UP form factor. Its compact footprint is ideal for robotics, portable equipment, embedded controllers, and other space-constrained systems.

efficiency

High-Speed Memory
and Onboard Storage

With LPDDR5 memory and onboard UFS 3.1 storage, the UP WCL Series delivers responsive system performance while reducing the need for additional storage components. This integrated design helps simplify development and preserve valuable installation space.

expand

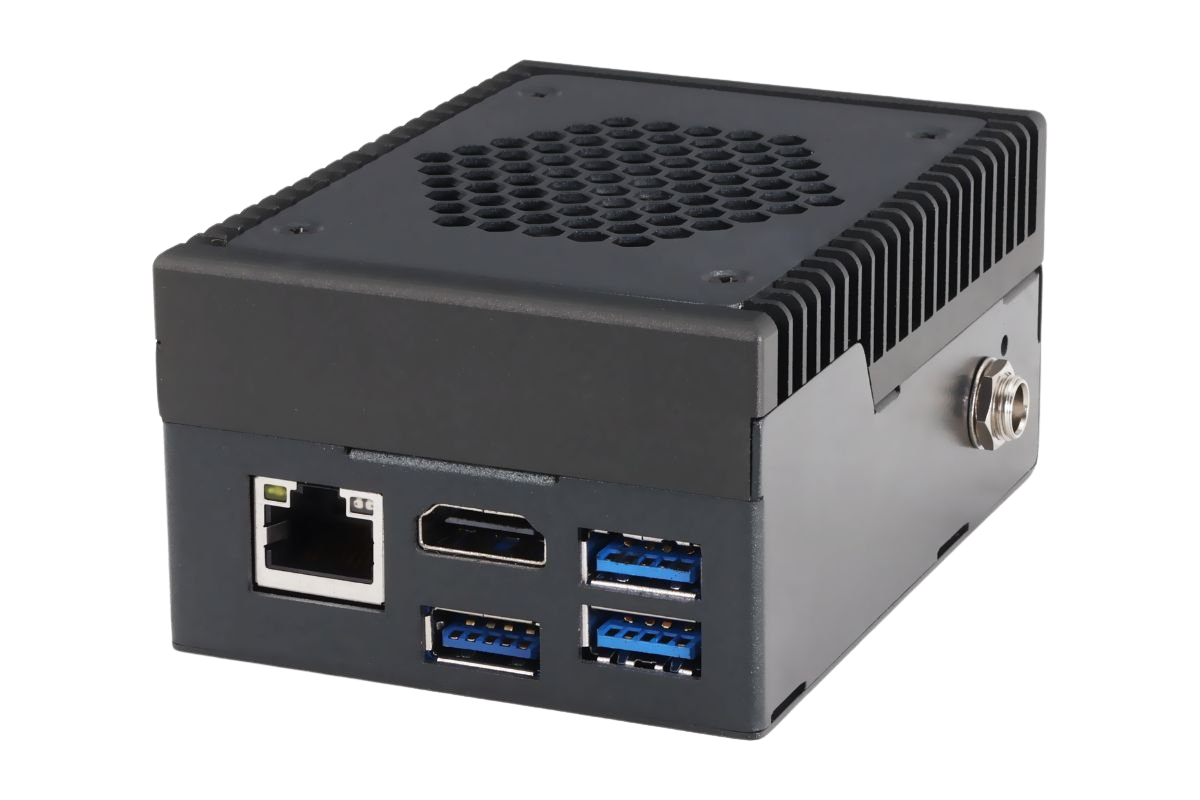

Essential Connectivity
and Wireless Expansion

  • 1x HDMI 2.1 display output
  • 3x USB 3.2 Gen 2 Type-A ports
  • 1x 2.5GbE RJ-45 port
  • 8x GPIO via 10-pin wafer
  • I²C, PWM, and SPI interfaces
  • 2x USB 2.0 ports and 1x UART header
  • 1x M.2 2230 E-Key slot for optional Wi-Fi and Bluetooth connectivity
infrastructure

Designed for Industrial Integration
and Deployment

From development to deployment, the UP WCL Series is engineered for reliable operation in industrial environments.
Industrial-grade features including TPM 2.0, 12V DC power input, long product availability, and operating system support help developers transform prototypes into dependable commercial solutions.

Why Choose the UP WCL Series?

The UP WCL Series fills the gap between traditional entry-level embedded platforms and high-performance AI systems.
It combines Intel® Core™ computing, Intel® Graphics, and integrated AI acceleration to deliver the ideal balance of AI capability, computing performance, power efficiency, and system cost.
Paired with the UP platform’s iconic credit card-sized design, the UP WCL Series enables developers to build compact Edge AI solutions without compromising performance or value.

Explore the UP Nexus WCL Series >

Applications and Markets

Unlocking Potential Across Diverse Markets

AI Vision Systems

• Object Detection
• Visual Inspection
• Image Analytics

Robotics & AMR

• Autonomous Navigation
• Sensor controller
• Motion Control

Industrial Automation

• Smart Factory
• Edge Controllers
• Predictive Maintenance

Smart Retail & Kiosks

• Interactive Kiosks
• Digital Signage
• Retail Analytics

 Intelligent Edge Gateways

• Local AI Processing
• Industrial IoT
• Secure Data Aggregation
• Transportation
• Smart Infrastructure

Block Diagram

Ready to start your journey with UP Xtreme PTL Edge

Fill in your information below, details about your project and what you want to know.  We will get back to you quickly to make a plan and get started.

Closeup of electronic circuit board with CPU microchip electronic components background

Community Support

UP Community

Join our developer community and share your knowledge about UP. Stuck with your project? Get help from one of the hundreds of industry professions that are already using UP!

UP Wiki

Learn more about UP with code and project examples, tutorials and OS installation guides

Find out the pinout and its pin-function here.

UP Downloads

Download everything you need to start your project. Our download area includes drivers, OS image, 2D/3D drawings, environment test reports, certifications and more.
