Bridging the Gap Between Entry-Level Embedded Computing

and High-Performance AI

UP Nexus WCL Series

The UP Nexus WCL Series is designed to bridge the gap between traditional entry-level embedded platforms and high-performance AI systems. Powered by Intel® Core™ processors (Series 3), it delivers an optimized balance of computing performance, integrated AI acceleration, power efficiency, and platform cost.

Designed for applications requiring greater connectivity, expandability, and system integration, the UP Nexus WCL Series combines up to 40 TOPS AI performance, high-speed LPDDR5 memory, onboard UFS storage, rich industrial connectivity, and extensive expansion options in a compact industrial platform. It enables developers, OEMs, and system integrators to build scalable Edge AI solutions with the performance and flexibility required for next-generation intelligent systems.

Overview　|　Kit Details　|　Community Support

Key Strengths

Scalable Intel® Core™ Platform

Powered by Intel® Core™ 3, Core™ 5, and Core™ 7 processors with Intel® Graphics and Intel® AI Boost, the UP Nexus WCL Series delivers balanced CPU, GPU, and NPU performance for demanding embedded and Edge AI applications.

Powerful Edge AI Acceleration

Delivering up to 40 Platform TOPS of AI performance, the platform enables fast and efficient AI inference for machine vision, robotics, intelligent automation, and real-time analytics while reducing cloud dependency.

High-Speed Memory & Storage

With LPDDR5 memory and onboard UFS 3.1 storage, the platform provides faster data access, larger AI model loading, and improved overall system responsiveness compared to traditional eMMC-based embedded platforms.

Rich Industrial Connectivity

Featuring dual 2.5GbE LAN, dual HDMI, USB Type-C, USB 3.2, serial interfaces, and 40-pin GPIO, the UP Nexus WCL Series provides versatile connectivity for demanding industrial and Edge AI applications.

Extensive Expansion Options

Multiple M.2 expansion interfaces support NVMe SSD, Wi-Fi, cellular modules, AI accelerators, and additional peripherals, enabling flexible system customization for a wide range of embedded solutions.

Built for Industrial Deployment

Designed for reliable long-term operation with TPM 2.0, wide-range DC power input, Windows® and Ubuntu® support, and long product availability, ensuring dependable deployment in commercial and industrial environments.

Why Choose the UP Nexus WCL Series?

From Development to Deployment – The UP Nexus WCL Series bridges the gap between traditional embedded platforms and high-performance AI computing, providing the connectivity, expansion, and computing capability required for today’s intelligent edge applications.

Whether building industrial controllers, AI vision systems, robotics, or intelligent gateways, the UP Nexus WCL Series offers a scalable platform that enables developers and OEMs to move confidently from prototype to commercial deployment.

Explore the UP WCL Series >

Applications and Markets

Designed for Intelligent Edge Applications

AI Machine Vision

• Object Detection
• Visual Inspection
• Image Analytics

Industrial Robotics & AMR

• Autonomous Navigation
• Sensor controller
• Motion Control

Industrial Automation

• Smart Factory
• Edge Controllers
• Predictive Maintenance

Edge AI Gateways

• Industrial IoT
• Local AI Processing
• Secure Connectivity

Intelligent Transportation

• Toll Video Analysis
• Fleet Management
• Smart Infrastructure

Embedded Systems

• Diagnostic Equipment
• Edge AI Gateway

Block Diagram

Ready to start your journey with UP Xtreme PTL Edge

Fill in your information below, details about your project and what you want to know. We will get back to you quickly to make a plan and get started.

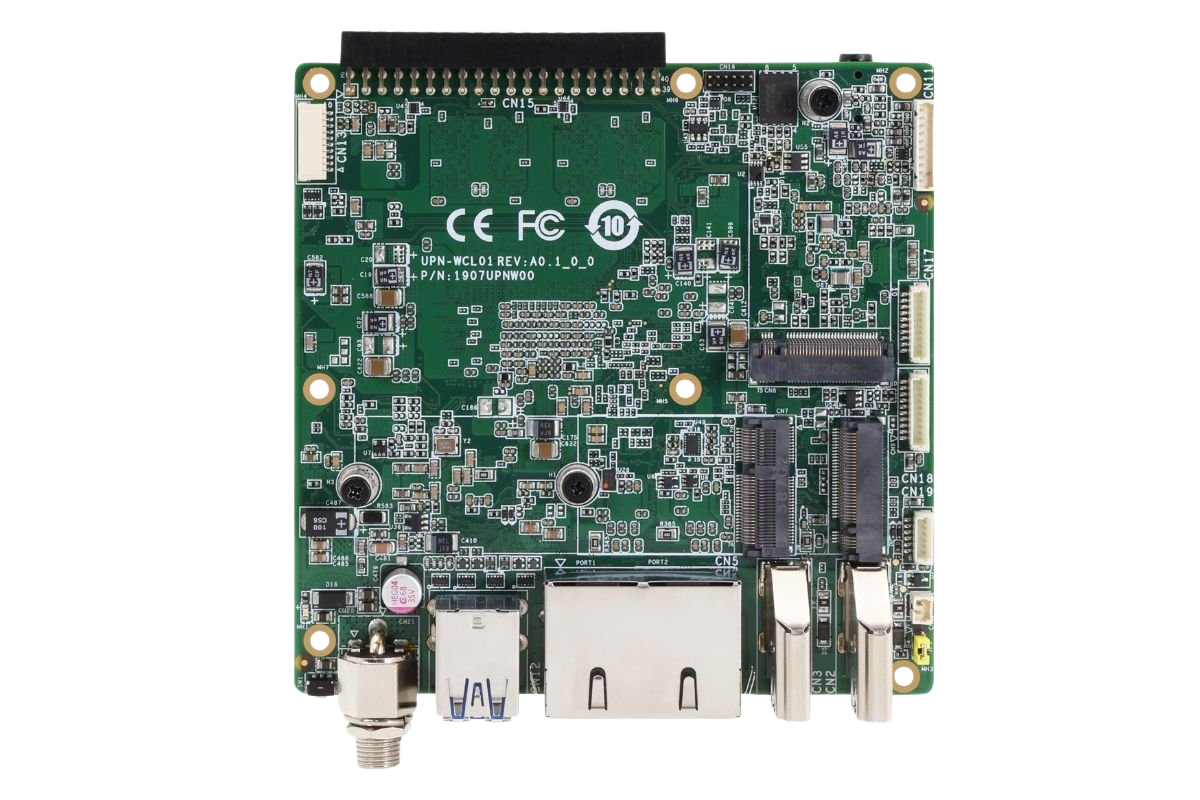

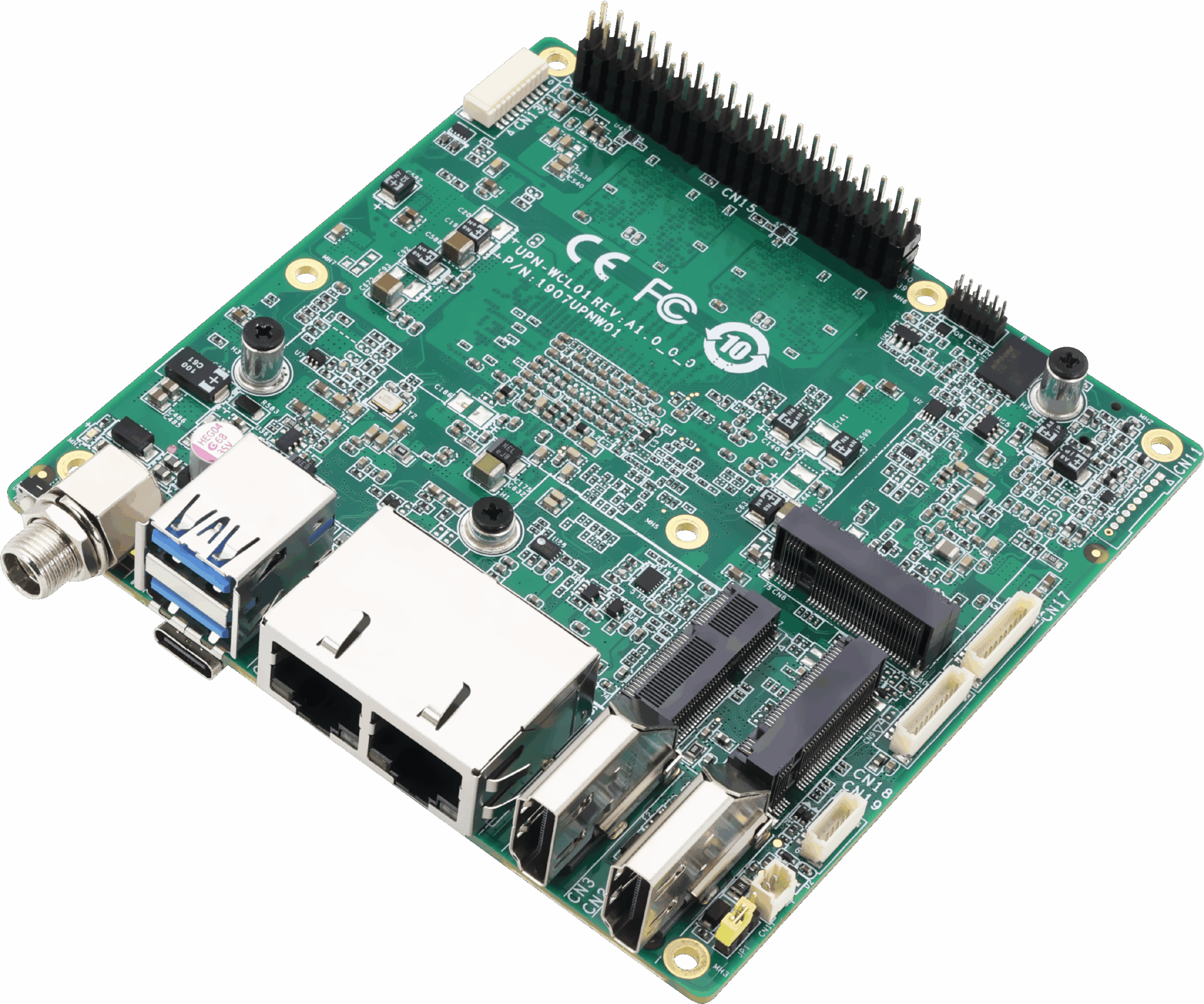

Board
CPU	• Intel® Core™ 7 processor 350 • Intel® Core™ 5 processor 320 • Intel® Core™ 3 processor 304 (formerly Wildcat Lake)
Memory	Up to 48GB onboard LPDDR5
Graphics	Intel® Graphics
Storage	Up to 256GB UFS
Expansion Slot	• M.2 2230 E-Key x 1 (CNVI, PCIe Gen 4 [x1], USB 2.0, UART) • M.2 2280 M-Key x 1 (PCIe Gen 4 [x2]) • M.2 2242 M-Key x 1 (PCIe Gen 4 [x1])
Security	TPM2.0 onboard
RTC	Yes
OS Support	• Windows 11 • Ubuntu 24.04

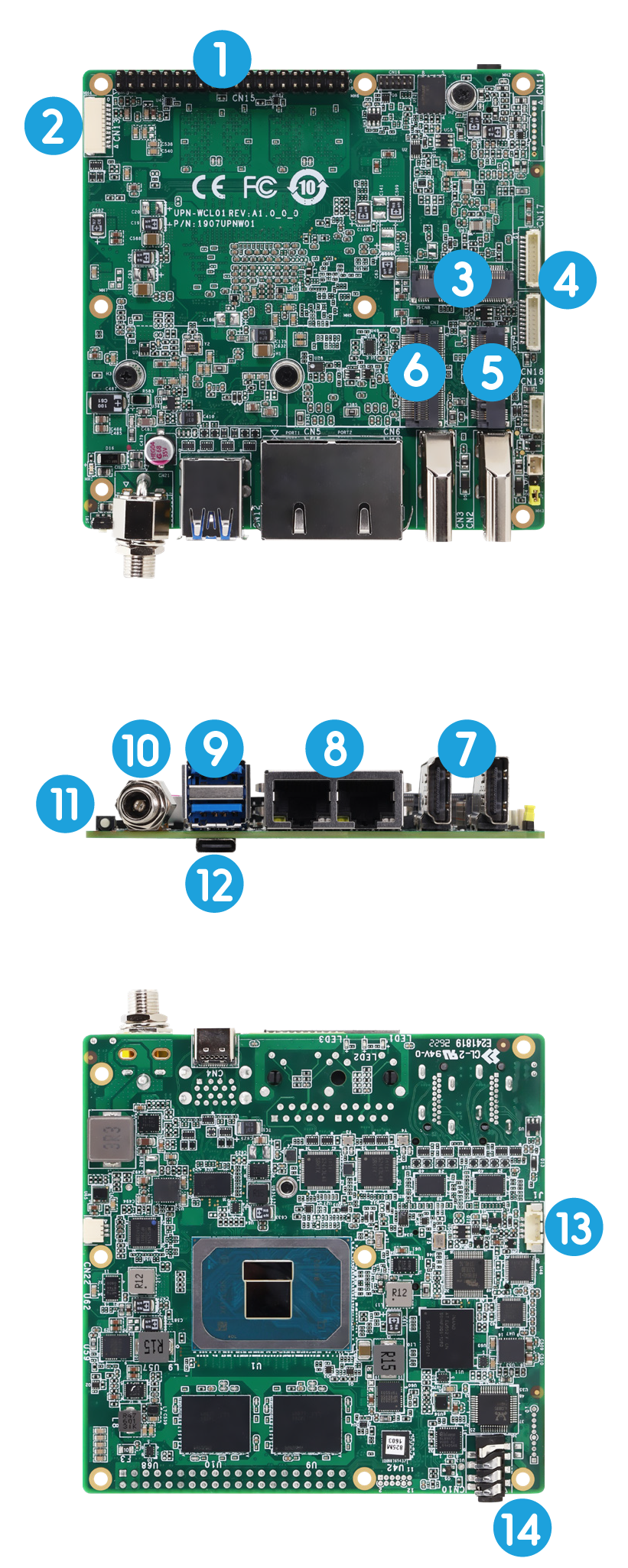

I/O Placements
USB	• USB 2.0 x 2 (via 10 Pin Header x 1) • USB 3.2 Gen 2 (Type-A) x 2 • USB 3.2 Gen 2×2 (Type-C) x 1
Display Port	• HDMI 2.1 (TMDS) x 2 • DP 1.4a via USB Type-C
Ethernet	2.5GbE x 2 (Intel® Ethernet Controller I226-IT)
COM	RS-232/422/485 via 10-pin Header x 2
Audio	Audio Jack x 1 (Mic-in + Line-out)
GPIO	40-pin GPIO x 1
Power Supply
Power Requirement	12V-24V DC in
Power Supply Type	AT/ATX
Power Consumption(Typical)	TBD
Mechanical
Dimensions (WxHxD)	4″ x 4″ (101.6mm × 101.6mm)
Net Weight	TBD
Gross Weight	TBD
Environment
Operating Temperature	-4°F ~ 140°F (-20°C ~ 60°C) / 0.5 airflow with active cooler
Operating Humidity	0% ~ 90% relative humidity, non-condensing
MTBF	TBD
Certification	CE/FCC Class A, RoHS Compliant, REACH

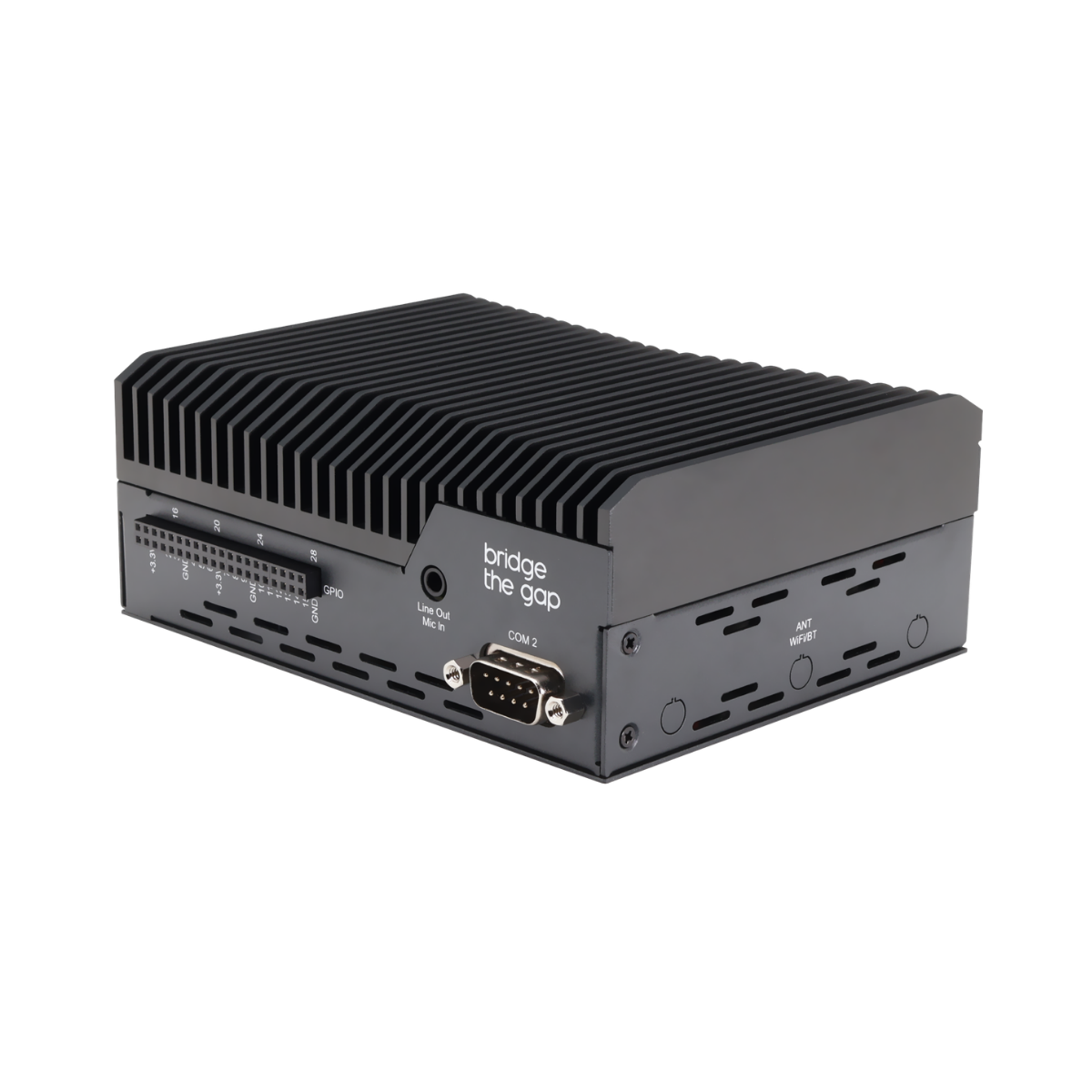

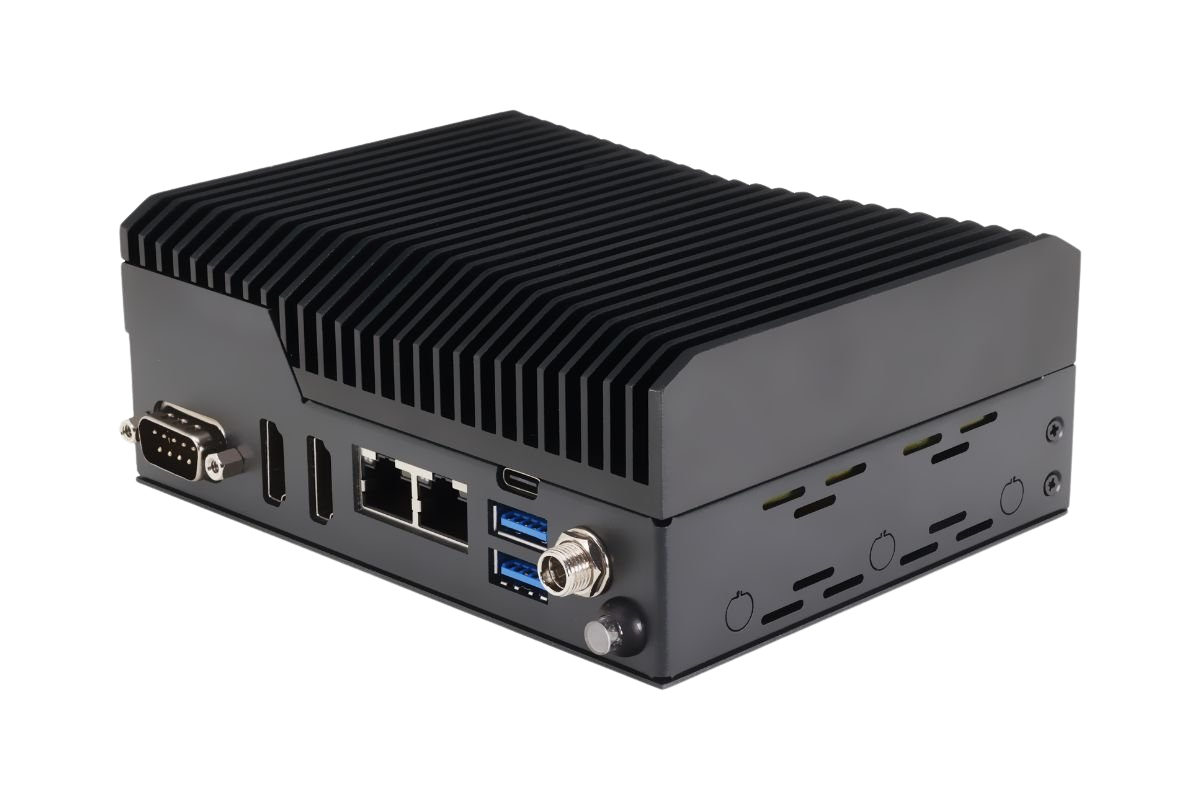

System
CPU	• Intel® Core™ 7 processor 350 • Intel® Core™ 5 processor 320 • Intel® Core™ 3 processor 304 (formerly Wildcat Lake)
Memory	Up to 48GB onboard LPDDR5
Graphics	Intel® Graphics
Storage	Up to 256GB UFS
WIFI/BT	Optional with M.2 2230 E-Key x 1
Expansion Slot	• M.2 2230 E-Key x 1 (CNVI, PCIe Gen 4 [x1], USB 2.0, UART) • M.2 2280 M-Key x 1 (PCIe Gen 4 [x2]) • M.2 2242 M-Key x 1 (PCIe Gen 4 [x1])
Security	TPM2.0 onboard
RTC	Yes
OS Support	• Windows 11 • Ubuntu 24.04
I/O Placements
USB	• USB 3.2 Gen 2 (Type-A) x 2 • USB 3.2 Gen 2×2 (Type-C) x 1
Display Port	• HDMI 2.1 (TMDS) x 1 • DP 1.4a via USB Type-C
Ethernet	2.5GbE x 2 (Intel® Ethernet Controller I226-IT)
COM	RS-232/422/485 x 2
Audio	Audio Jack x 1 (Mic-in + Line-out)
GPIO	40-pin GPIO x 1
Power Supply
Power Requirement	12V-24V DC-in (Lockable plug)
Power Supply Type	AT/ATX
Power Consumption(Typical)	TBD
Mechanical
Dimensions (WxHxD)	134mm x105mm x 53mm
Net Weight	TBD
Gross Weight	TBD
Environment
Operating Temperature	-4°F ~ 140°F (-20°C ~ 60°C) / 0.7 airflow
Operating Humidity	0% ~ 90% relative humidity, non-condensing
Storage Temperature	-4°F ~ 158°F (-20°C ~ 70°C)
MTBF	TBD
Certification	CE/FCC Class A, RoHS Compliant, REACH
